to produce plastic parts. These tools are critical for achieving high precision, consistency, and efficiency in mass production.
Below are key aspects of injection molding tooling:

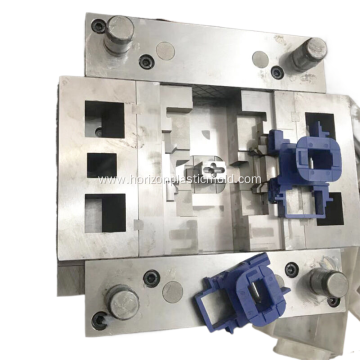

1. Core Components of Injection Molding Tools
Mold Cavity : The space where molten plastic is injected to form the final part.
Core : The part of the mold that shapes the internal features of the product.
Runner System : Channels that guide molten plastic from the injection machine nozzle to the cavity.
Cooling System : Channels for coolant to control mold temperature and ensure rapid, uniform cooling.
Ejection System : Mechanisms (e.g., ejector pins) to remove the solidified part from the mold.

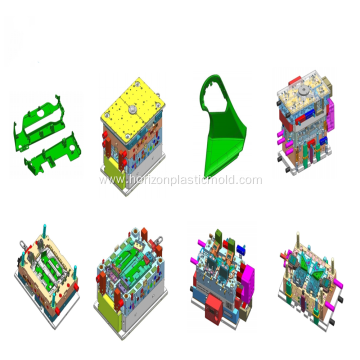

2. Tooling Design Considerations
Material Selection :
Molds are typically made from hardened steel (e.g., P20, H13) or aluminum, depending on production volume and part complexity.
Example : Steel for high volume runs; aluminum for prototypes or low volume projects.
Part Complexity :
Design must account for undercuts, thin walls, surface finishes (e.g., textures for grip or aesthetics), and draft angles for easy ejection.
Tolerances :
Precision tooling requires tight tolerances (±0.02–0.05 mm) for critical dimensions.
Gate Design :
Gate location (where plastic enters the cavity) impacts part quality (e.g., weld lines, shrinkage).
3. Tooling Manufacturing Process
CNC Machining : Used to create the mold’s core and cavity with high precision.
EDM (Electrical Discharge Machining) : For intricate details or hard to machine geometries.
Surface Treatment :
Polishing for glossy finishes.
Texturing (e.g., chemical etching) for patterns like wood grain or matte surfaces.
Coatings (e.g., nickel plating) to improve wear resistance.
4. Tooling Applications
Mass Production : Used in automotive, consumer electronics, medical devices, and packaging.
Example : Smartphone casings, automotive dashboards, syringes.
Prototyping : Rapid tooling (e.g., soft aluminum molds) for pre production testing.
5. Challenges in Tooling
Cost : High upfront investment for complex molds (often $10,000–$100,000+).
Lead Time : 4–12 weeks for tool fabrication.
Maintenance : Regular cleaning, repair, and adjustments to extend mold life.
Defect Prevention : Addressing issues like sink marks, warping, or flash through tooling optimization.
6. Tooling Innovation
3D Printed Molds : For low volume production or prototyping using materials like aluminum filled resin.
Conformal Cooling : Advanced cooling channels (via additive manufacturing) to reduce cycle times.
Modular Molds : Interchangeable inserts for multi product flexibility.
